International Sales of Machines for the Acrylics Business
Diamond P 25
Pay attention to how it works!!
Acrylic Molding Oven
Pay attention to how it works!!
Featured Products

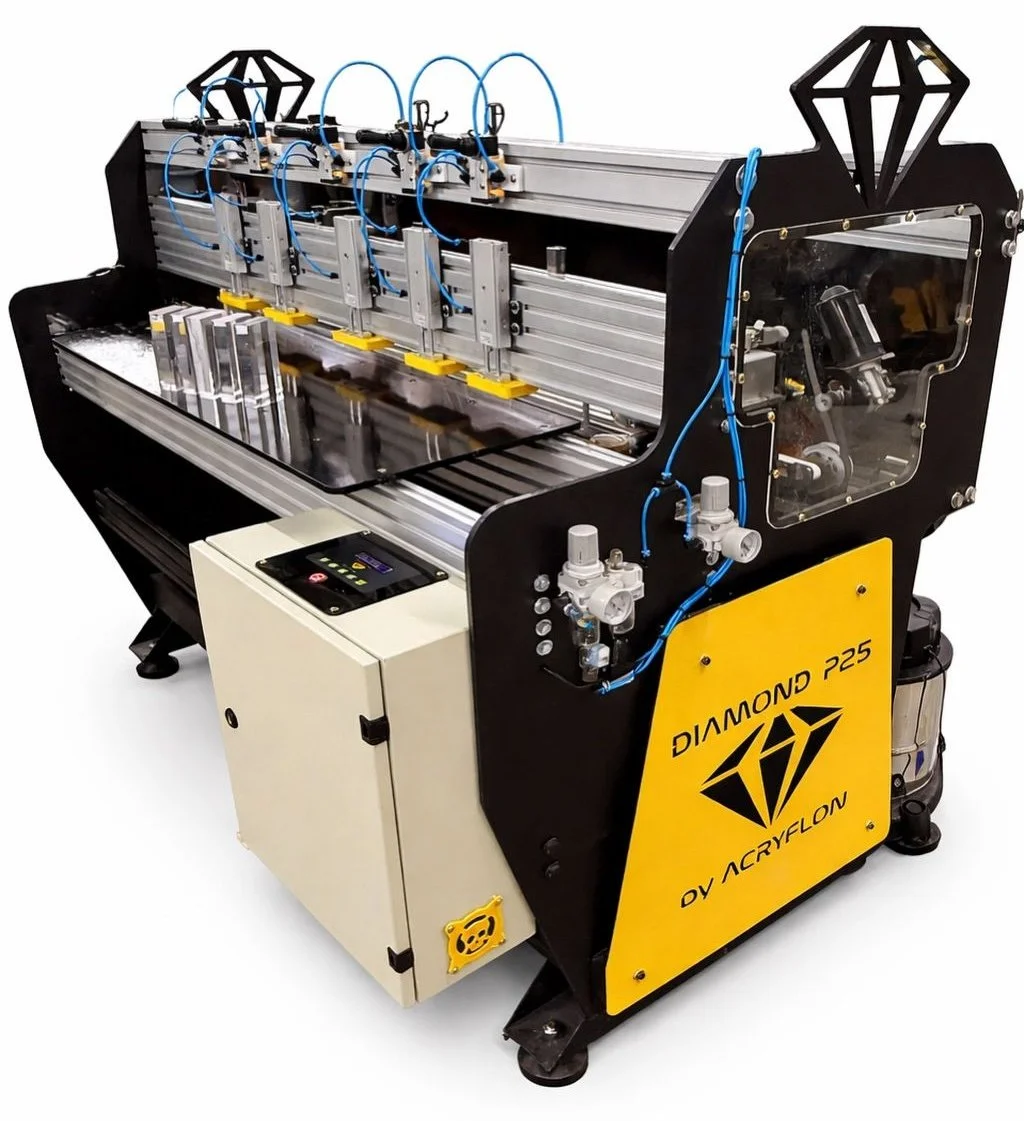

Model: DIGITAL Diamond P25 – 1m usable length
Professional acrylic diamond polishing machine
Robust carbon steel structure with powder coating
For acrylics up to 40mm thick. With integrated squaring system
General equipment characteristics:
Crystal clear polishing. High gloss.
Perfect finish for gluing and assembling parts.
Precise squaring: Aligns and squares the piece before final finishing.
Digital panel with controller and HMI for intuitive and easy-to-use control.
Leveling feet. 3HP air-cooled spindle.
Polishing head with monocrystalline and polycrystalline diamond. Clamping system with 6 pneumatic clamps. Waste collection system with vacuum cleaner.
Optional Accesory: P45 Head for polishing in 45 degrees angle Price: $8,000.00 USD

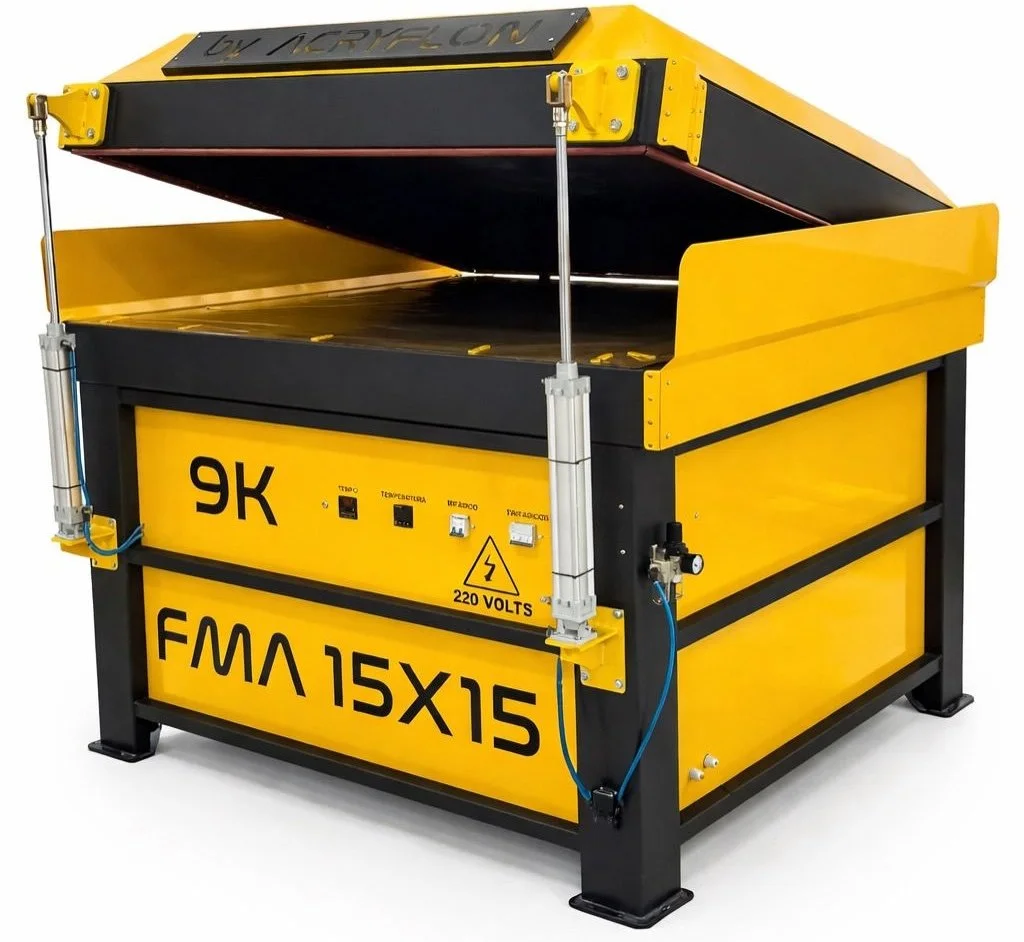

Acrylic heating support base made of high-conductivity sheet metal.
Teflon sheet lining.
Rock wool insulation.
Front top cover opening with 2 lower pneumatic cylinders.
Fully configurable digital temperature indicator and PID control.
Digital timer for standardizing heating time with alarm.
Type J sensor.
Tubular resistive loads in stainless steel.
Power supply voltage 220/380 Volts three-phase.
Entire structure in laser-cut carbon steel with CNC bending.
Sheet thickness 5/16” – 3/8” – 1/2”.
Electrostatic powder coating.
1.5 x 1.5 m (usable interior surface area)

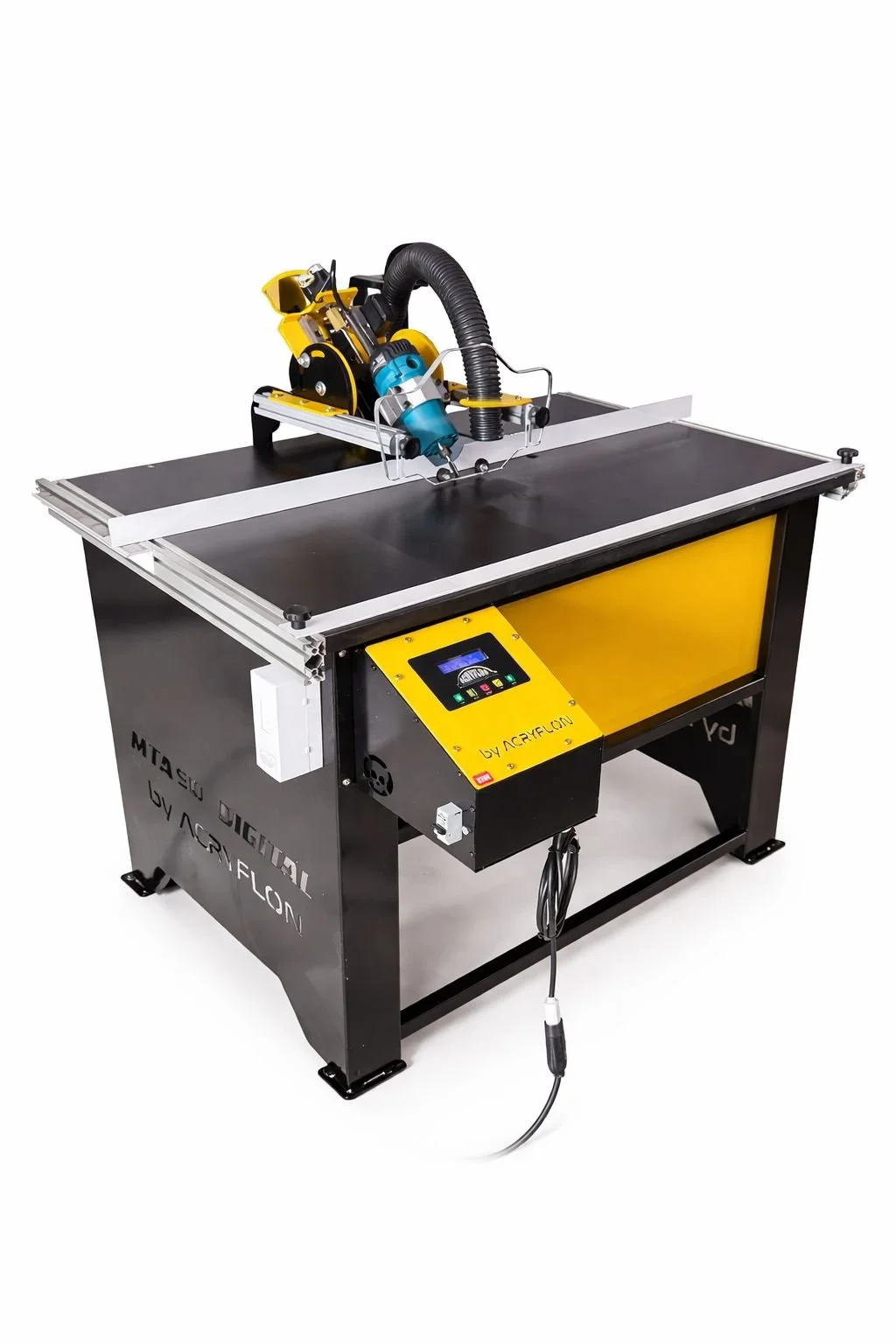

Adjustable motor table with prismatic linear guide and angle adjustment.
Digital inclinometer included.
Router with digital tool positioning.
Original Makita motor.
Angle carriage with stepper motor and trapezoidal spindle.
With milling cutter kit.
Digital measurement indicator for angle carriage up and down.
20mm milling cutter.
Adjustable stop.
2 guide rulers for the stop.
Complete digital panel with safety key.
Digital control of "ON/OFF", "TOOL ZERO", "UP/DOWN".
All controls via touch-sensitive keys.
About
our company
For over 20 years, ACRYFLON has been creating the best solutions in acrylic machine development and molding of parts throughout Brazil.
Now opening our doors to international customers with international shipping.
